Description
Product Features
- Freestanding vertical cube ice machine for bars, prep areas, and beverage service.
- Produces up to 210 lb / 24 hr (95 kg) for higher-volume drink and food-prep demand.
- Built-in bin stores 80 lb (36 kg), keeping a substantial reserve at the machine.
- Makes full, half or large cube options for different beverage styles.
- Approximately 15 minutes per cycle supports steady ice replenishment.
- Air-cooled R290 refrigeration supports efficient output without water-cooled plumbing.
- Runs on 110 V / 60 Hz / 1 Ph with 5.8 A draw and 526 W rated power.
- 304 SS, ABS, PE liner and galvanized rear construction support commercial use.
- Polyurethane foam with Cyclopentane (CFC-free) helps maintain stored ice quality.
- DOE, ETL, NSF and NRCan certifications support commercial specification requirements.
Technical Specifications
| Dimensions | 26 in W x 26.96 in D x 38.18 in H |
|---|---|
| Condenser Type | Air-Cooled |
| Refrigerant | R290 (4.23 oz) |
| Rated Amp, Voltage, Power | 5.8 A, 110 V / 60 Hz / 1 Ph, 526 W |
| Certification | DOE, ETL, NSF, NRCan |
| Ice Production | 210 lb / 24 hr (95 kg) |
| Maximum Storage Bin Capacity | 80 lb (36 kg) |
| Ice Shape & Size | Cube: full / half / large |
| Ice Making Time / Cycle | Approx. 15 min / cycle |
| Ice Release Method | Built-in bin |
| Materials | 304 SS, ABS, PE liner, galv. rear |
| Insulation | Polyurethane foam |
| Foam Blowing Agent | Cyclopentane (CFC-free) |
| Net Weight | 276 lb (125 kg) |
| Warranty | 3 Year Parts & Labour |

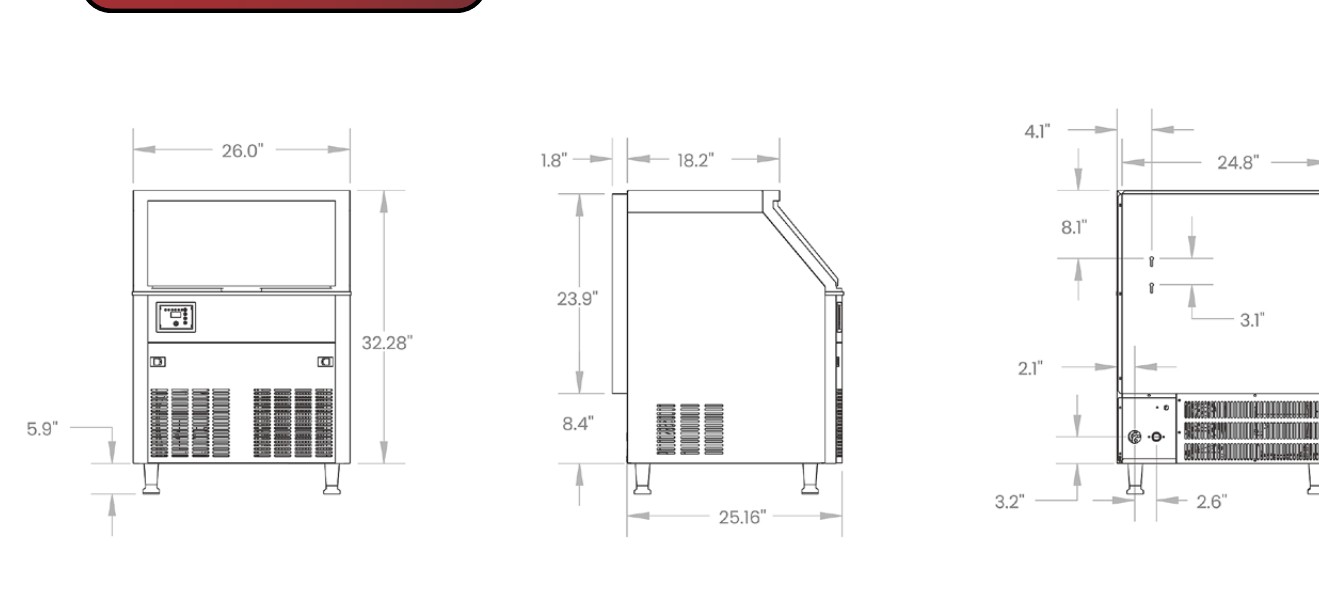

Technical Drawing
Environmentally Friendly R290 Refrigerant
High latent heat and low discharge temperatures improve efficiency.
Offers better energy efficiency, reducing operating costs.
Global Warming Potential (GWP) of just 3, compared to R134a's 1430 and R404A's 3922.
